Key Points:
- A smooth, rounded design.
- Snap on, quick fit ends.
- Positive open & close action.
- Integral flyscreen in external hood.
- Suitable for PVCu, timber & aluminium windows.
- Tested in accordance with BS EN 1026:2016 & BS EN 1027: 2016 Weather performance.
- Rod control available- for full compliance with Approved Document K 2013.
- Can be fitted to give updraught or down-draught.
- Various colours to choose from.
- Joiner pieces available.
Description:

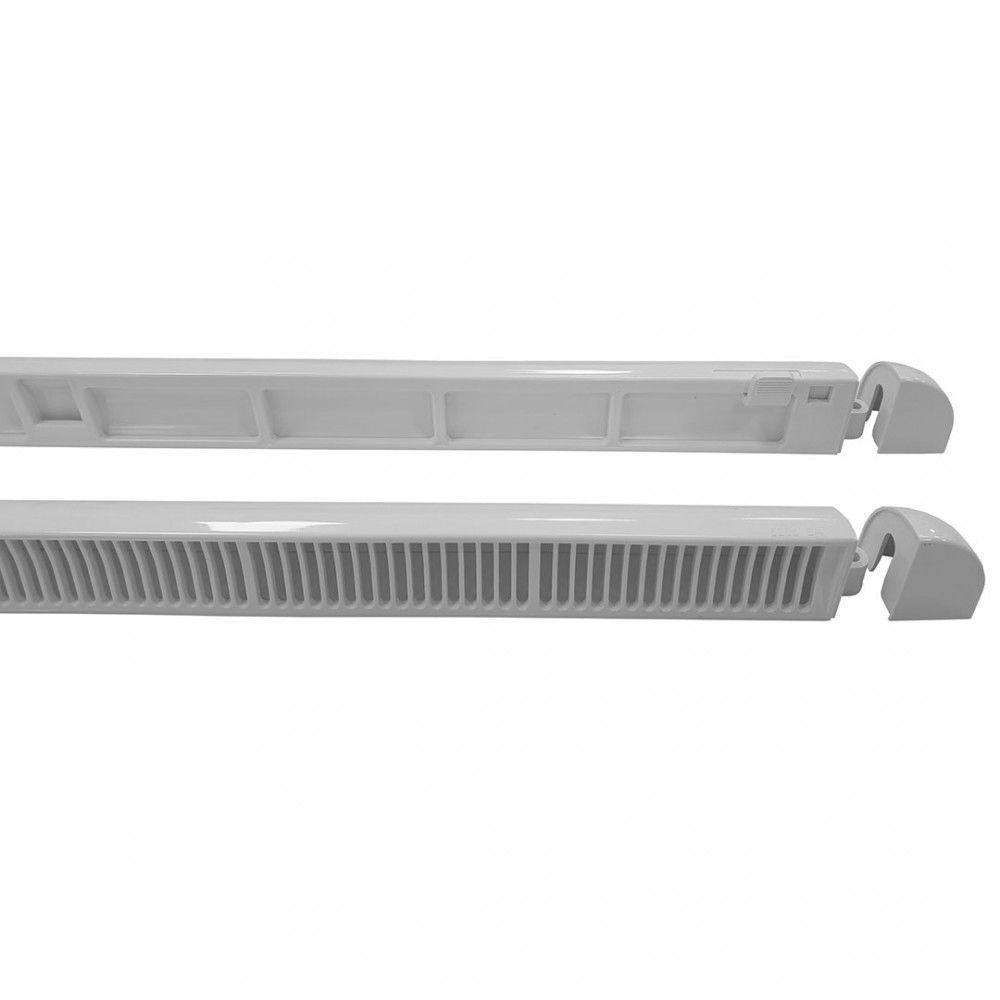

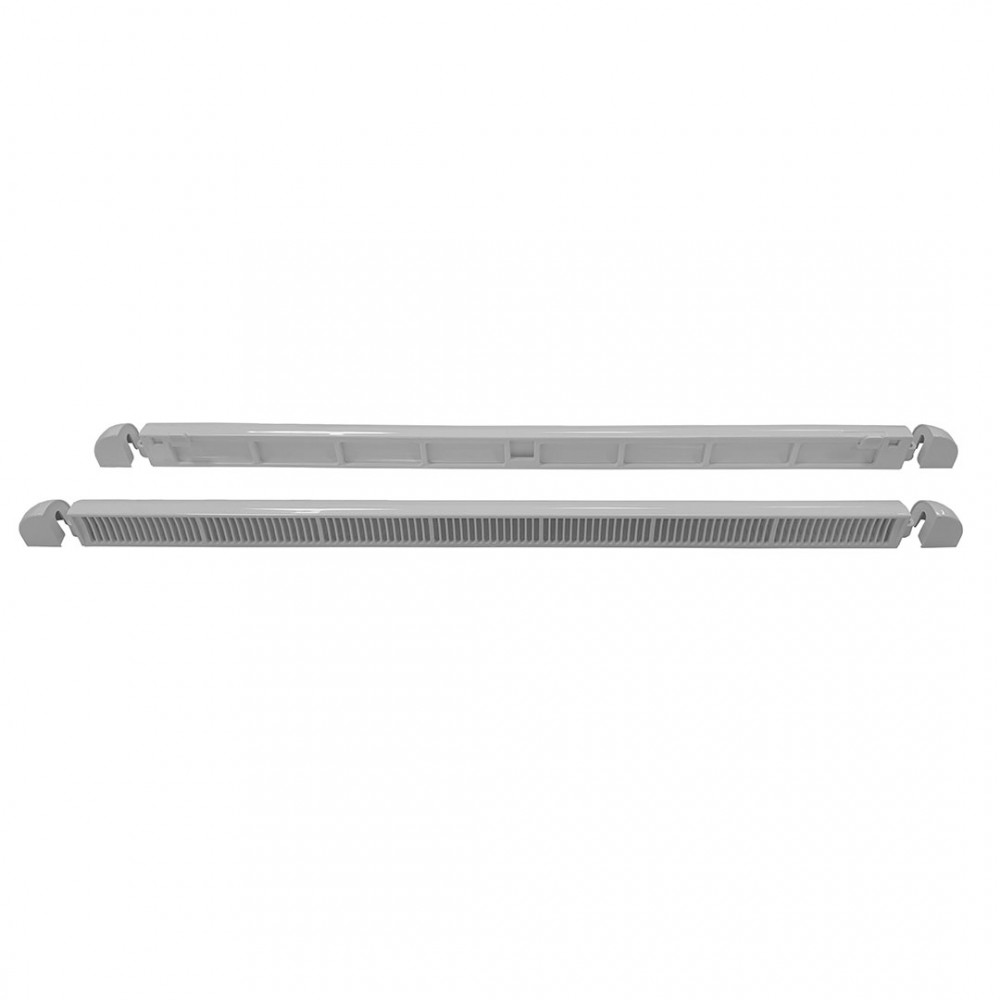

Manufactured in the highest quality U.V Stabilised PVCu, the Framevent Hi-Flow Plus have been specifically designed to make it easy to achieve the requirements of Approved Document F 2021 whilst still maintaining the smooth, rounded aesthetic synonymous of the Framevent range. The Framevent Hi-Flow Plus achieves 5,205mm2 EA on a length of only 525mm.
Fixing Instructions:
- Route out the Frame with the correct slot size & configuration for the model to be fitted.
- Place unit centrally over the slots.
- Fix unit in place by using screws provided.
- Screw hole centres are 20mm in from each end (40mm off the overall length).
Performance:
- Independently tested to BS EN 13141-1:2019.
- Water tightness of 400pa.
- Independently acoustically tested in accordance with BS EN 20140-10:2016, ISO 140-10:2010.
Maintenance:
- The Framevent Hi-Flow Plus can be cleaned using a damp cloth. The external hood should be brushed lightly to remove dust from the flyscreen area.
- *Airflow rates quoted are for when fitted in accordance with manufacturer’s instructions. We recommend silicone sealing vents for best results*.
Specification:
- Available in a White colour.
- 525mm Length x 28mm wide. Equivalent area as per BS 13141-1:2019 – 5205mm2.
- Slot Size – 2 x (230x13mm) + (10mm land).
